The NDAA-compliant, Blue UAS Listed EO/IR/LRF payload - a 4K zoom EO sensor, a 640 x 512 radiometric thermal camera by Teledyne FLIR, and an integrated 2400m laser rangefinder in a single 854g package.
A complete EO/IR/LRF payload
VIO is an NDAA-compliant payload featuring a 4K zoom EO sensor, a 640 x 512 radiometric thermal camera from Teledyne FLIR, and an integrated 2400m laser rangefinder. Developed under the Thermal by FLIR program, VIO delivers professional-grade multi-sensor intelligence in an industry-leading, plug-and-play form factor for MAVLink-supported drones.
Designed & engineered by Gremsy - VIO F1 & VIO G1
Plug-and-play, industry-leading size, only 854g
MAVLink drone support
4K resolution zoom sensor
640x512 radiometric thermal sensor, 8x digital zoom
Laser rangefinder up to 2400m
Three sensors. One payload.

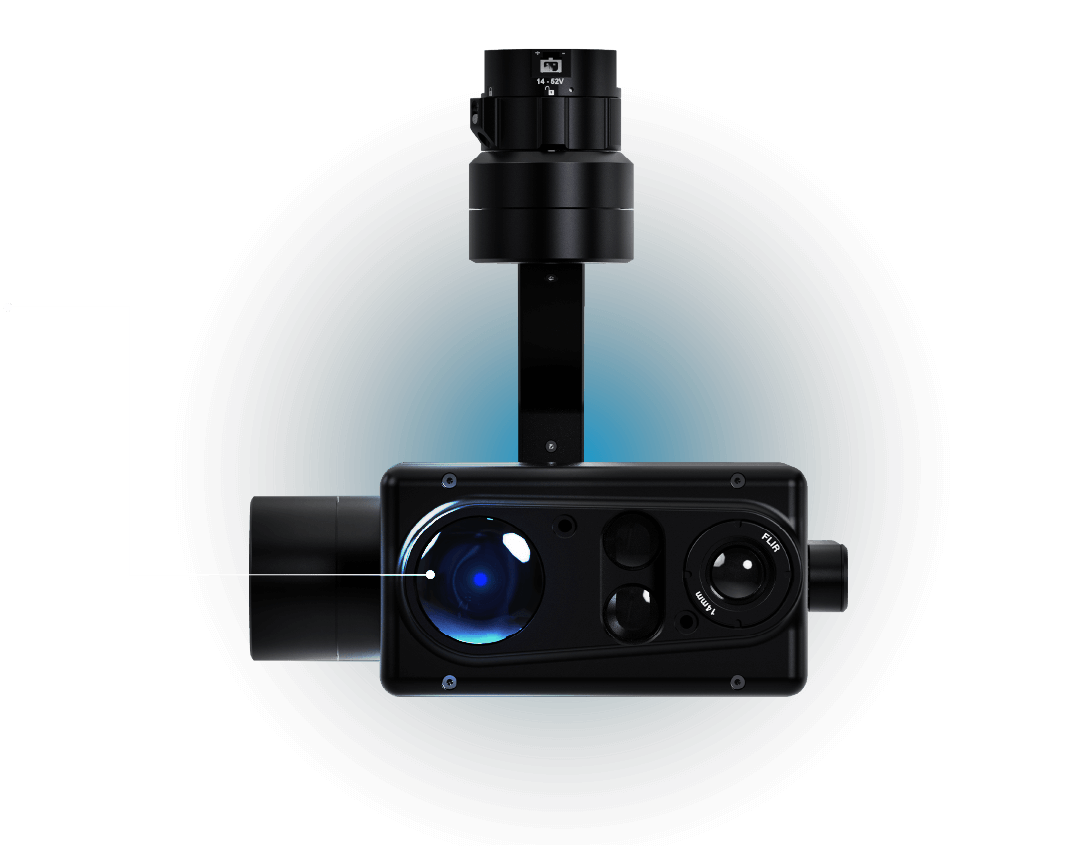

Powerful Zoom Camera
- 30x Super Resolution, 240x max zoom
- 8.51 MP 1/2.5" CMOS sensor
- Focal length f 4.4 - 88.4 mm
- 4K @ 30 fps video

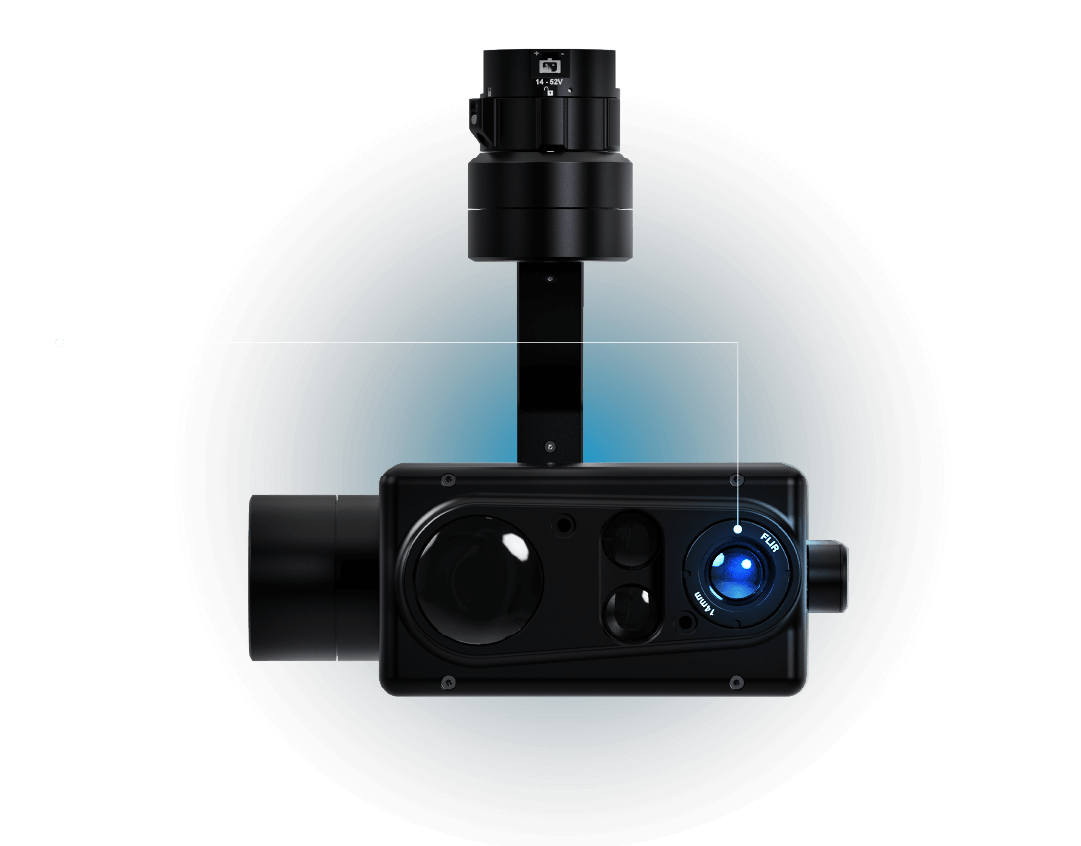

Radiometric Thermal Camera
- 1x - 8x digital zoom
- 32° HFOV, 14 mm EFL
- 640 x 512 @ 60 Hz resolution
- Thermal sensitivity ≤ 50 mK
Laser Rangefinder
- 0 - 2400 m @ 1 Hz
- 0 - 1200 m @ 10 Hz
- Precision 0.1 - 0.5 m
- Integrated GPS geotagging
Lock on and stay on target
VIO tracks moving objects across both the electro-optical and radiometric thermal channels. Once a target is selected, the payload keeps it auto-centered in frame - maintaining a stable lock through evasive maneuvers, changing light, and long standoff distances.
- Auto-track across EO and IR channels
- Continuous auto-centering on the selected target
- Reliable performance in day, low-light and no-light
Know exactly where the target is
The integrated laser rangefinder measures target distance up to 2400 m and, combined with onboard GPS, calculates precise target coordinates for reporting, mapping and coordination.
Intelligence built in

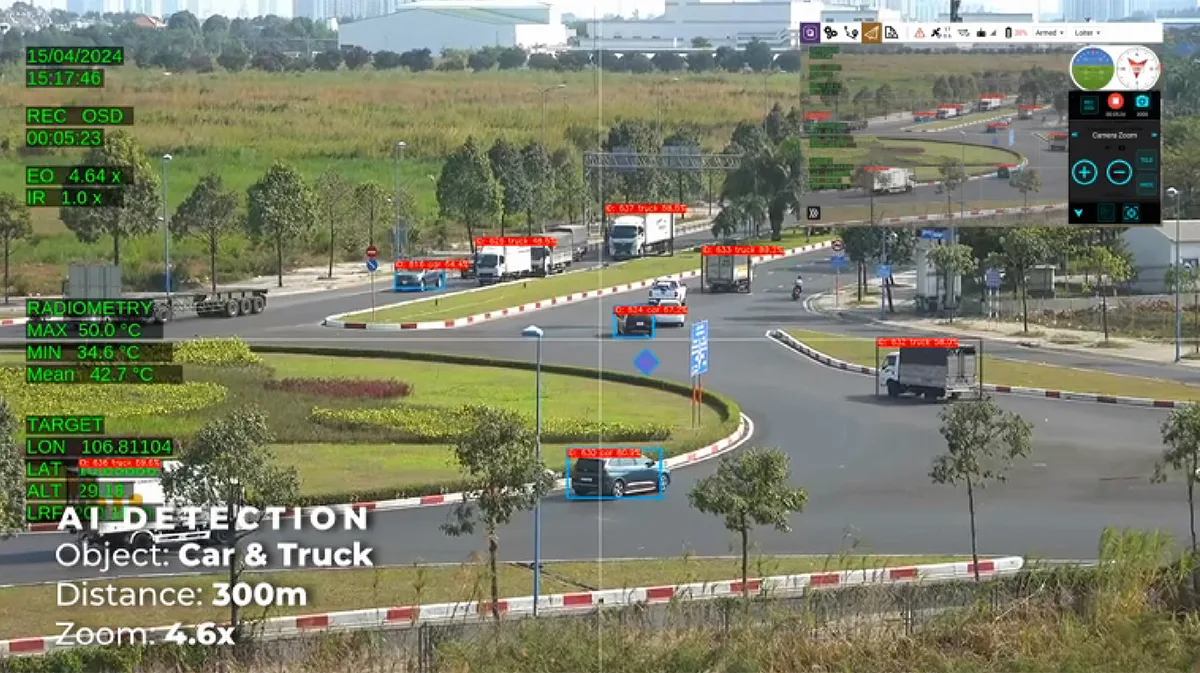

AI Detection
Onboard AI automatically detects and classifies objects of interest across the field of view in real time.

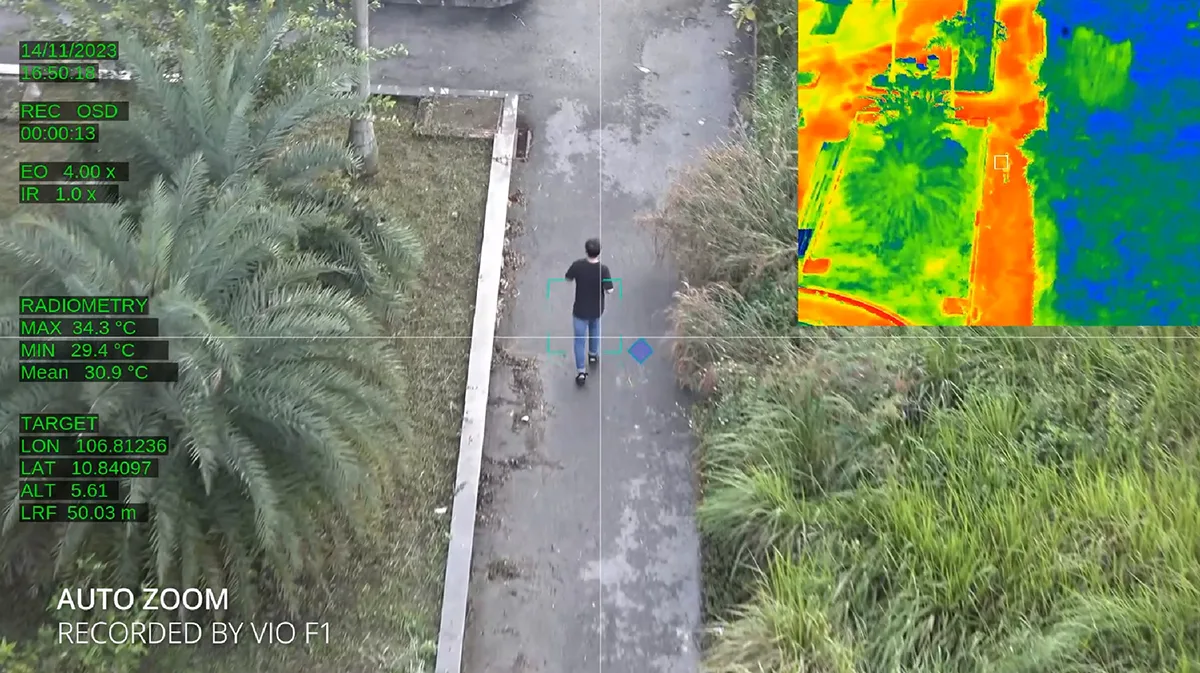

AI Auto Zoom
The payload locks onto a detected target and adjusts zoom automatically to keep it framed and identifiable.
See it your way
Full electro-optical view with 4K zoom sensor for long-range daytime observation.

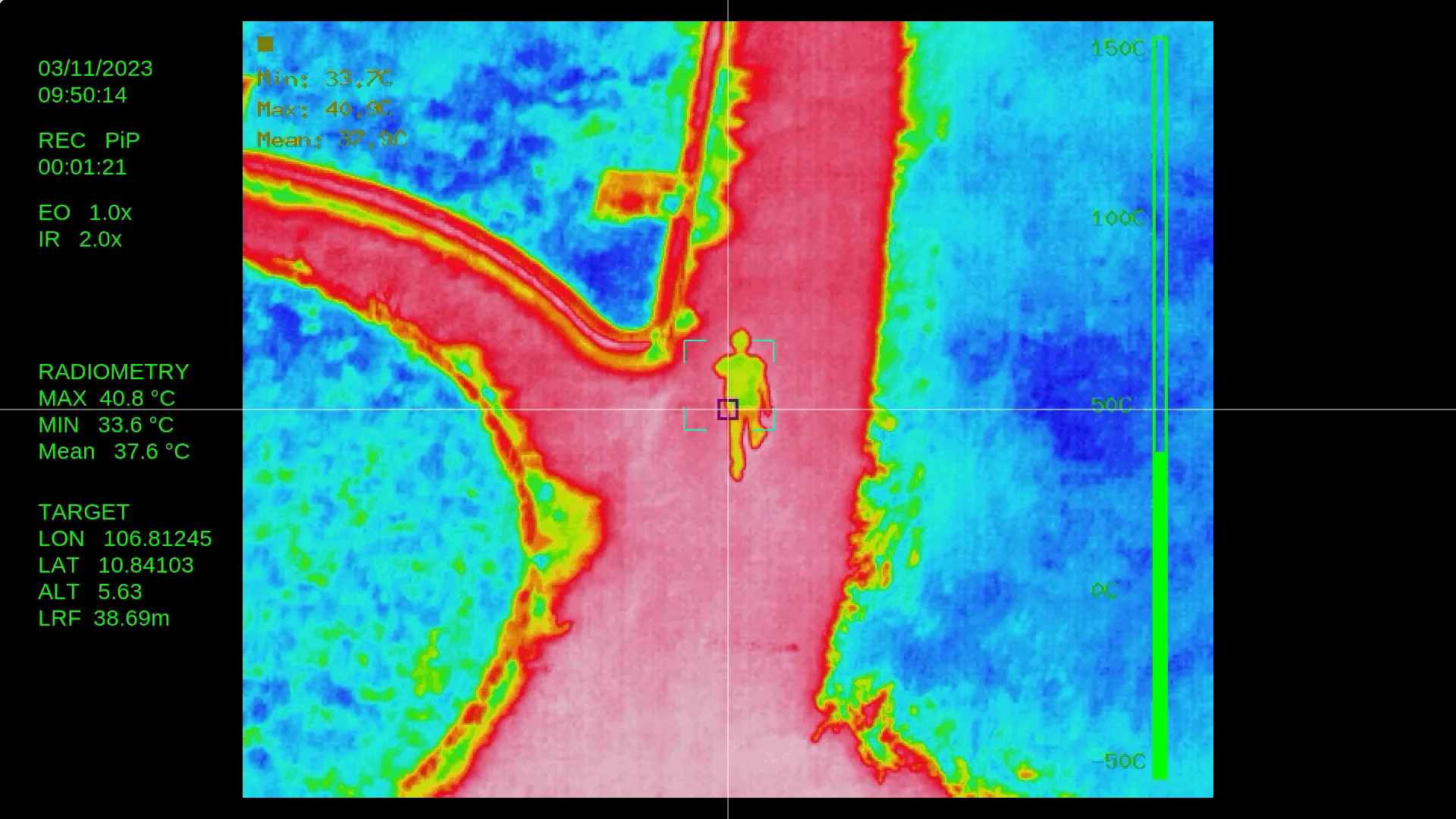

Radiometric thermal imaging with 640 x 512 resolution for low-light and no-light conditions.

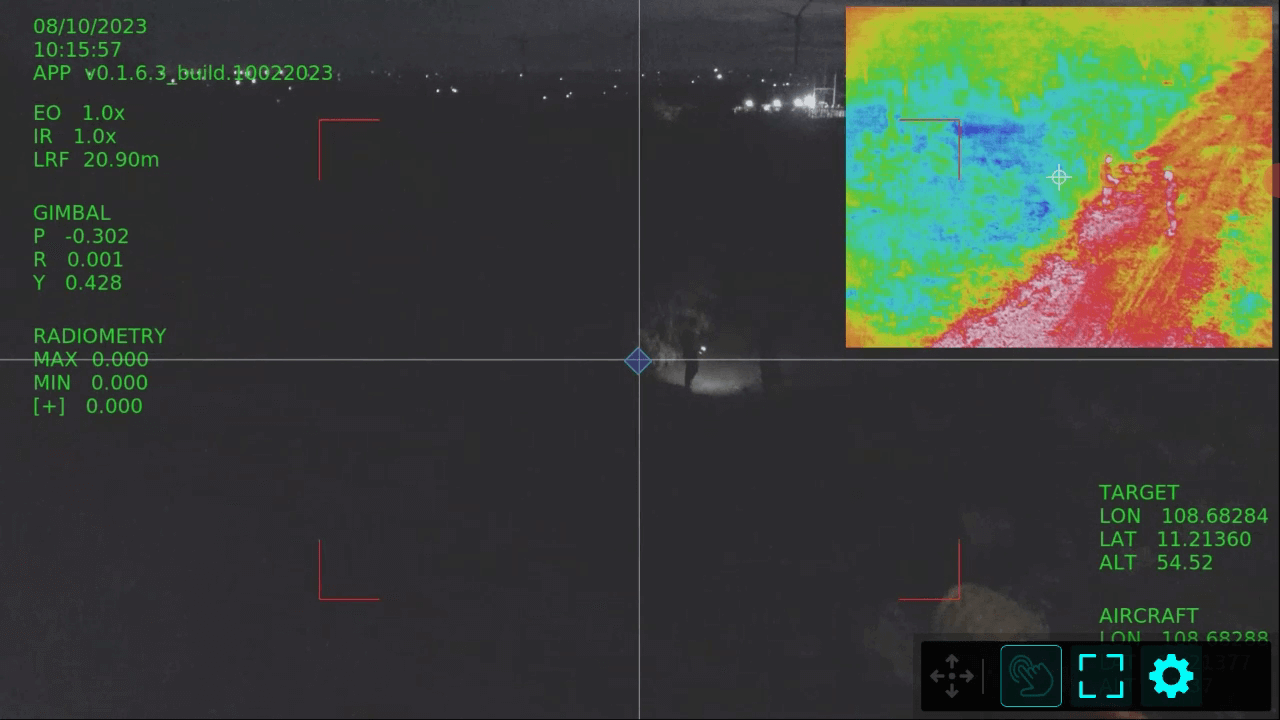

Picture-in-picture blending of visible and thermal channels for enhanced situational awareness.

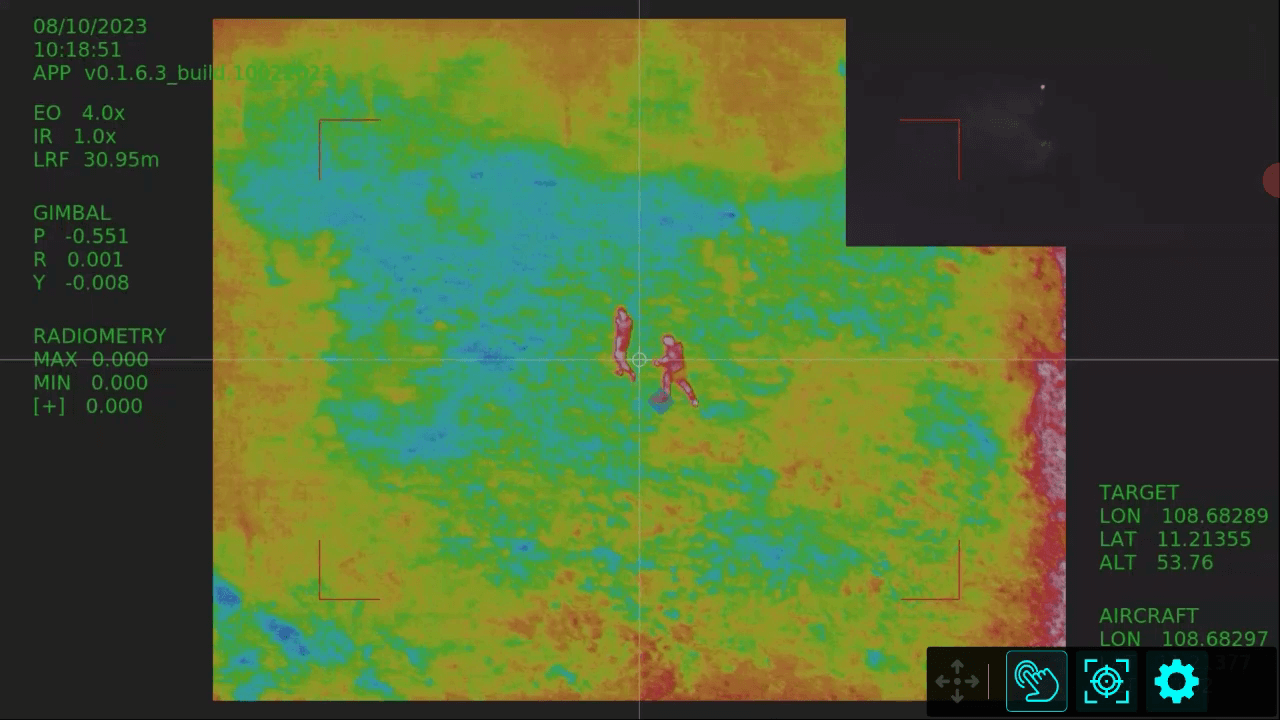

Synchronized EO and IR streams tracking the same target simultaneously.
Ready for real missions
Geotagging
Every capture is tagged with precise GPS coordinates for mapping and reporting.
Video Stream
HDMI and Ethernet RTSP streaming for live mission feeds.
Payload SDK
Open SDK for deep integration with your ground control and autonomy stack.
Direct Media Retrieval
Pull imagery and video directly from onboard storage after every flight.
Get a quote for VIO F1 today
Tell us about your mission and our team will help you configure the right VIO payload for your platform.
